Biometrics E-Link ForcePlates

  • Availability:
    This product is available for pre-order only.
    For more information call us on 028 9266 5482.
  • Code:
    FP4
Enquire Now

BIOMETRICS E-LINK FORCEPLATES

Enhance weight-bearing assessment and rehabilitation with E-LINK ForcePlates. Designed for precision and ease of use, they are ideal for upper and lower extremity exercises, supporting recovery, strength building, and progress tracking.

Three options available:

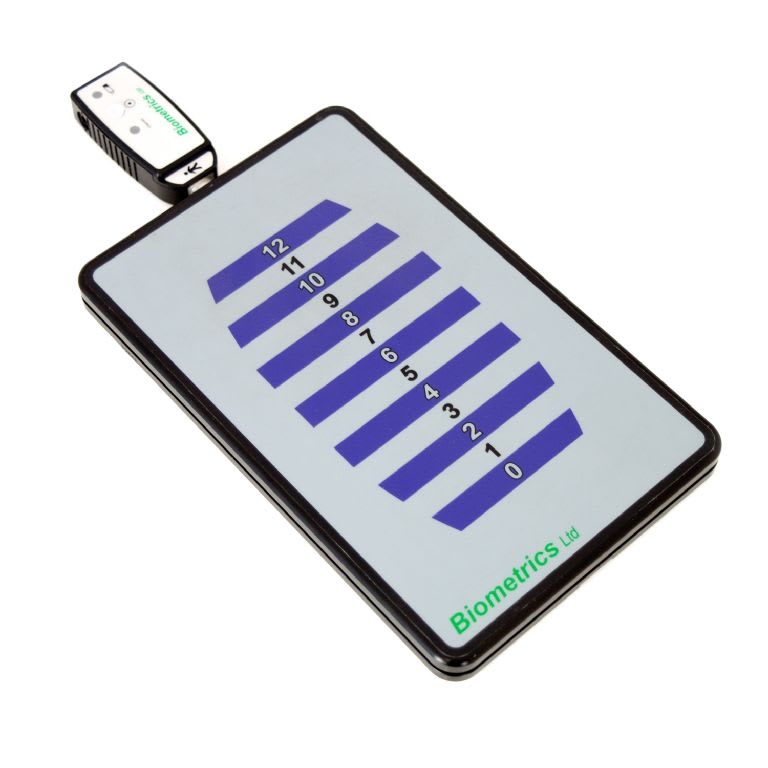

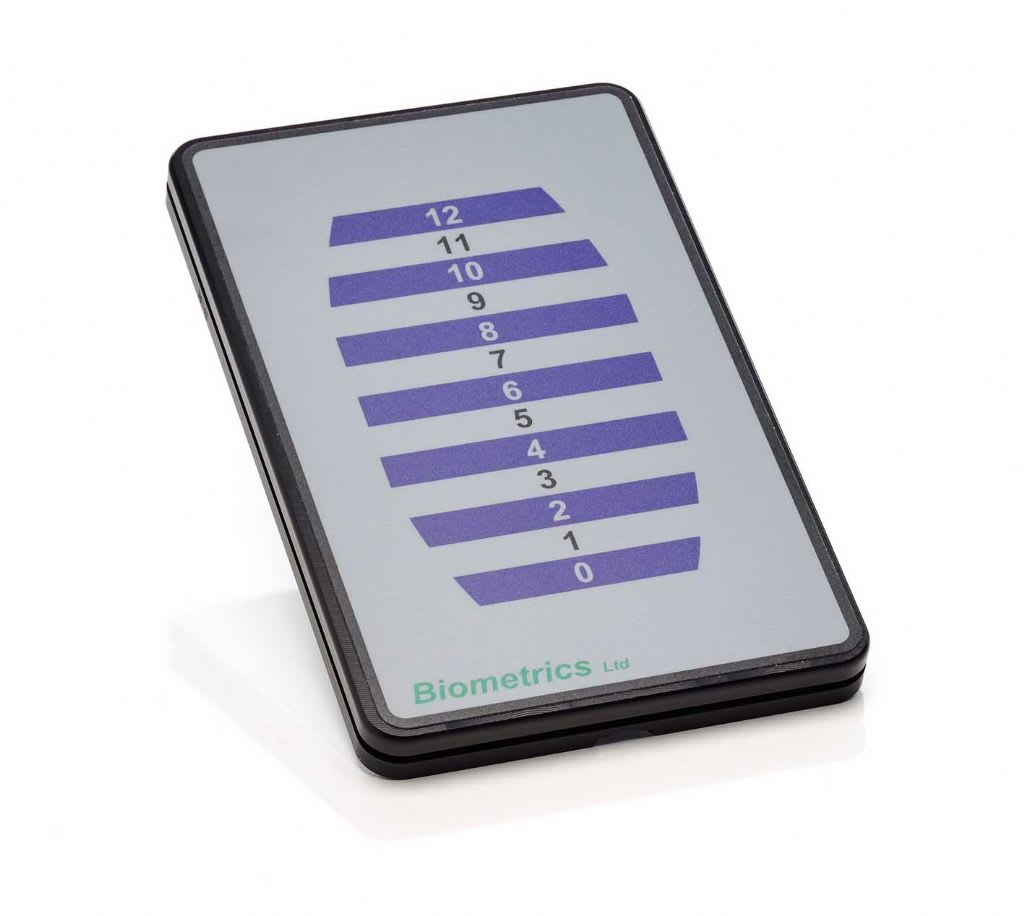

Single ForcePlate

The E-LINK Single ForcePlate accurately measures weights from 0.1 to 100 kg (220 lbs), making it ideal for both upper and lower extremity weight-bearing exercises. Designed to detect everything from a light touch to full limb support, it’s perfect for rehabilitation and strength assessment.



Single-Axis ForcePlates

The E-LINK Two ForcePlates System provides precise, single-axis measurement to objectively assess postural stability on a static surface.

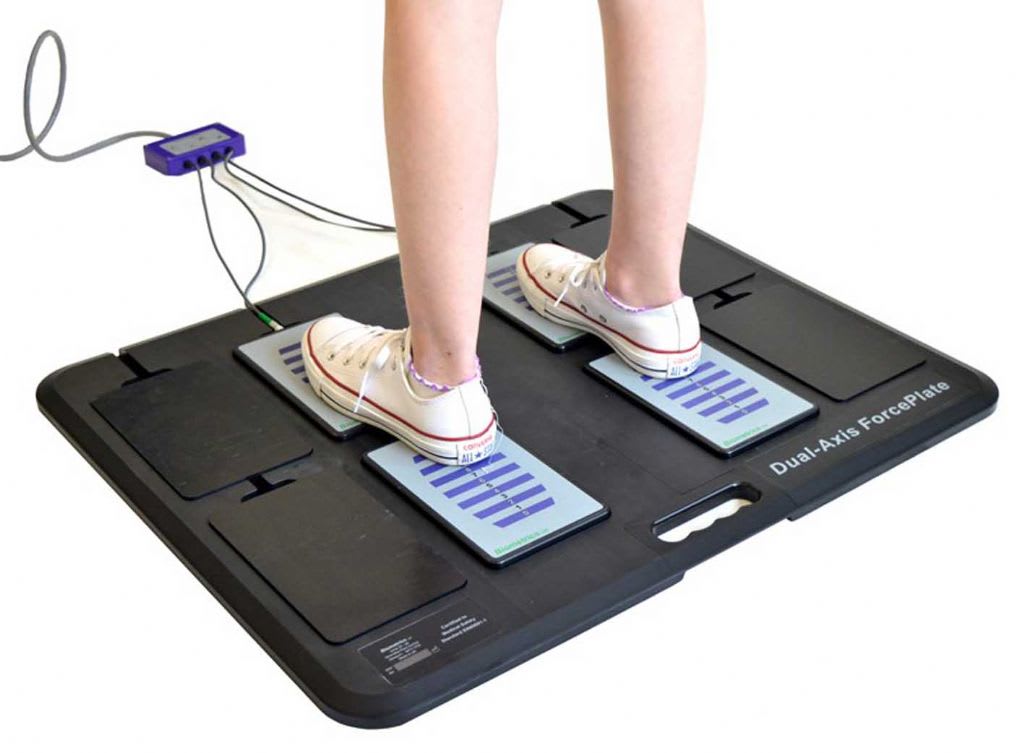

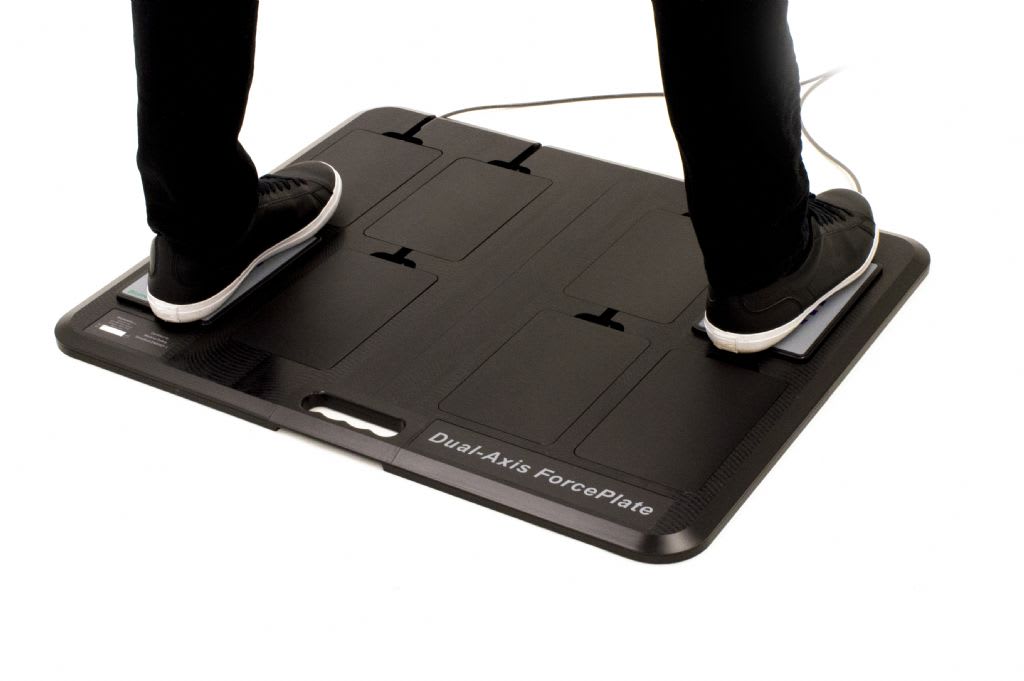

Dual-Axis ForcePlates

Achieve precise weight-bearing assessment with the E-LINK Dual-Axis ForcePlate System. Designed to measure forces in multiple directions, it ensures accurate evaluation for upper and lower extremity exercises, enhancing rehabilitation effectiveness.



PLEASE NOTE an InterX Unit is required for these devices. Please give us a call for more information or for a demonstration +44 28 9266 5482.

Specifications:

Single ForcePlate

  • Calibration: Compression only

  • Rated load (RL): 0 to 100Kg or 0 to 220lbs

  • Maximum allowable User mass, Safe overload: 150Kg or 330lbs maximum

  • Case material: Aluminum

  • Weight: 800g

  • Accuracy: ±1.5 % of Full Scale


Single-Axis ForcePlates
  • Calibration:Compression only

  • Rated load (RL):0 to 100 Kg or 0 to 220 lbs

  • Maximum allowable User mass,
    Safe overload
    :150 Kg or 330 lbs maximum

  • Case material:Aluminum

  • Weight:800 g

  • Accuracy:±1.5 % of Full Scale

 BaseFrame

  • Dimensions:740mm x 600mm x 20mm

  • Weight:10 Kg

  • Material:Acetal CoPolymer


Dual-Axis ForcePlates
  • Calibration:Compression only

  • Rated load (RL):0 to 100 Kg or 0 to 220 lbs

  • Safe overload:150 Kg or 330 lbs maximum

  • Case material:Aluminum

  • Weight:800 g

  • Accuracy:±1.5 % of Full Scale

BaseFrame

  • Dimensions:740mm x 600mm x 20mm

  • Weight:10 Kg

  • Material:Acetal CoPolymer

PLEASE NOTE an InterX Unit is required for these devices.

Please give us a call for more information or for a demonstration +44 28 9266 5482.
