X200 Exam Light
The X200 LED range of examination lights are designed specifically for use during medical consultation and diagnosis.
X200 Range Overview
- Variable intensity from 0% to 100%.
- Smooth, fully enclosed head to prevent dust ingress.
- Excellent colour rendering - totally natural skin tones.
- Emits no infrared radiation - no increase in temperature in the light-field.
- A strong beam of light with an even intensity across the entire area for clearer viewing and reduced eye strain.
- No life-risk voltage at the light-head.
- BioProtect© anti-microbial coating for infection control - reduces the population of bacteria such as MRSA and E.Coli by between 99.99% and 99.9999% within 24 hours.
- Optional 3-4 hour battery back-up available
- The DARAY X200 range examination light is designed specifically for use during medical consultation and diagnosis.
- Utilising LED technology, this general examination light has been developed to provide an intense beam with excellent colour rendering properties.
- The X200 range has a low total cost of ownership, costing up to 75% less to run than equivalent halogen lights. This light has around 50,000 hours of life from the LED light engine equating to around 25 years of clinical use. The X200 range requires minimal maintenance and has a smooth, fully enclosed BioProtect head to assist with the management of infection control. This is an ideal light for GP surgeries and clinics where flexibility and performance are crucial.
BioProtect
X200 Range Specifications
|
X200/X240 Light
|
Light Source
|
LED
|
|
|
Light Intensity (Lux) @ 0.5m
|
32,000 ±5%
|
|
|
Light Intensity (Lux) @ 0.75m
|
14,000 ±5%
|
|
|
Light Intensity (Lux) @ 1.0m
|
8,000 ±5%
|
|
|
Light Intensity Adjustment Range
|
10 - 100%
|
|
|
Colour Temperature (Kelvin)
|
4,300K ±500
|
|
|
Colour Rendering Index (CRI)
|
95
|
|
|
Colour Rendering (R9)
|
88
|
|
|
Light Field Diameter (D50)
|
@0.5m:120mm
|
|
|
|
@0.75m:135mm
|
|
|
|
@1m:180mm
|
|
|
Light Field Diameter (D10)
|
@0.5m:230mm
|
|
|
|
@0.75m:325mm
|
|
|
|
@1m:460mm
|
|
|
Number of LED's
|
3
|
|
X200/X240 Power
|
Power Consumption
|
12W 0.1A
|
|
|
Average Working Life
|
> 50,000 Hours
|
|
|
Input Voltage
|
100-240V AC 50/60 Hz
|
|
|
Output Voltage
|
12V DC 1A
|
|
|
Temperature Rise on Patient /User
|
≤2°C
|
|
X200/X240 Other
|
Warranty Period
|
5 Years
|
X200
Has a plug top power supply and a flexible gooseneck with a pivot base allowing the user to choose between various mounting options.

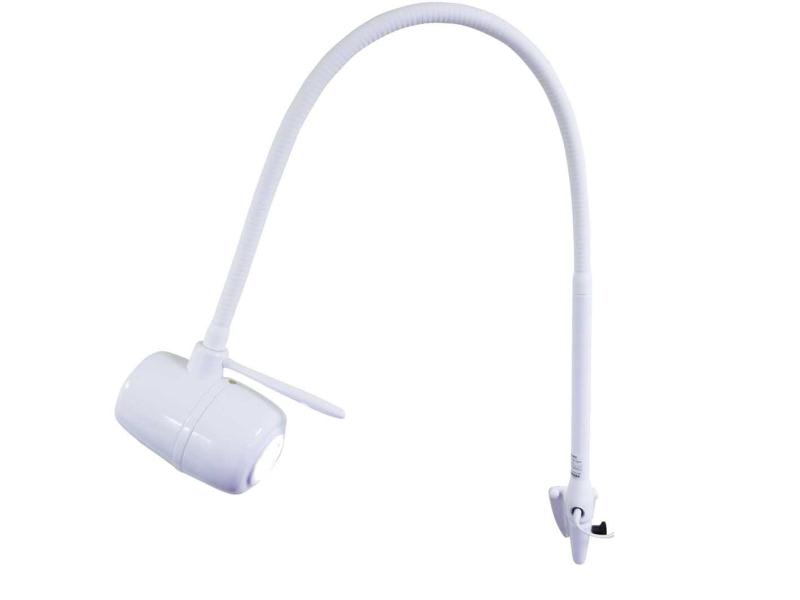

X210
Is flush fit wall mounted as standard with integral transformer, has a flexible gooseneck and can be either hard wired or powered with a plug in IEC cable.
X230
Is panel mounted with a flexible gooseneck
X240
Has a plug top power supply and a balanced arm with a pivot base allowing the user to choose between various mounting options
X200 Range Notes
The X200 range has a low total cost of ownership, costing up to 75% less to run than equivalent halogen lights. This light has around 50,000 hours of life from the LED light engine equating to around 25 years of clinical use (based on 5.5 hours clinical use per day). This model requires minimal maintenance and has a smooth, fully enclosed BioProtect© head to assist with the management of infection control. This is an ideal light for GP surgeries and clinics where flexibility and performance are crucial. Choose between many different mounting types dependant on your application, including: wall, mobile, and desk mounting options.
X200 Range Medical Approvals/Certificates
Available on request
