X340 LED Examination Light

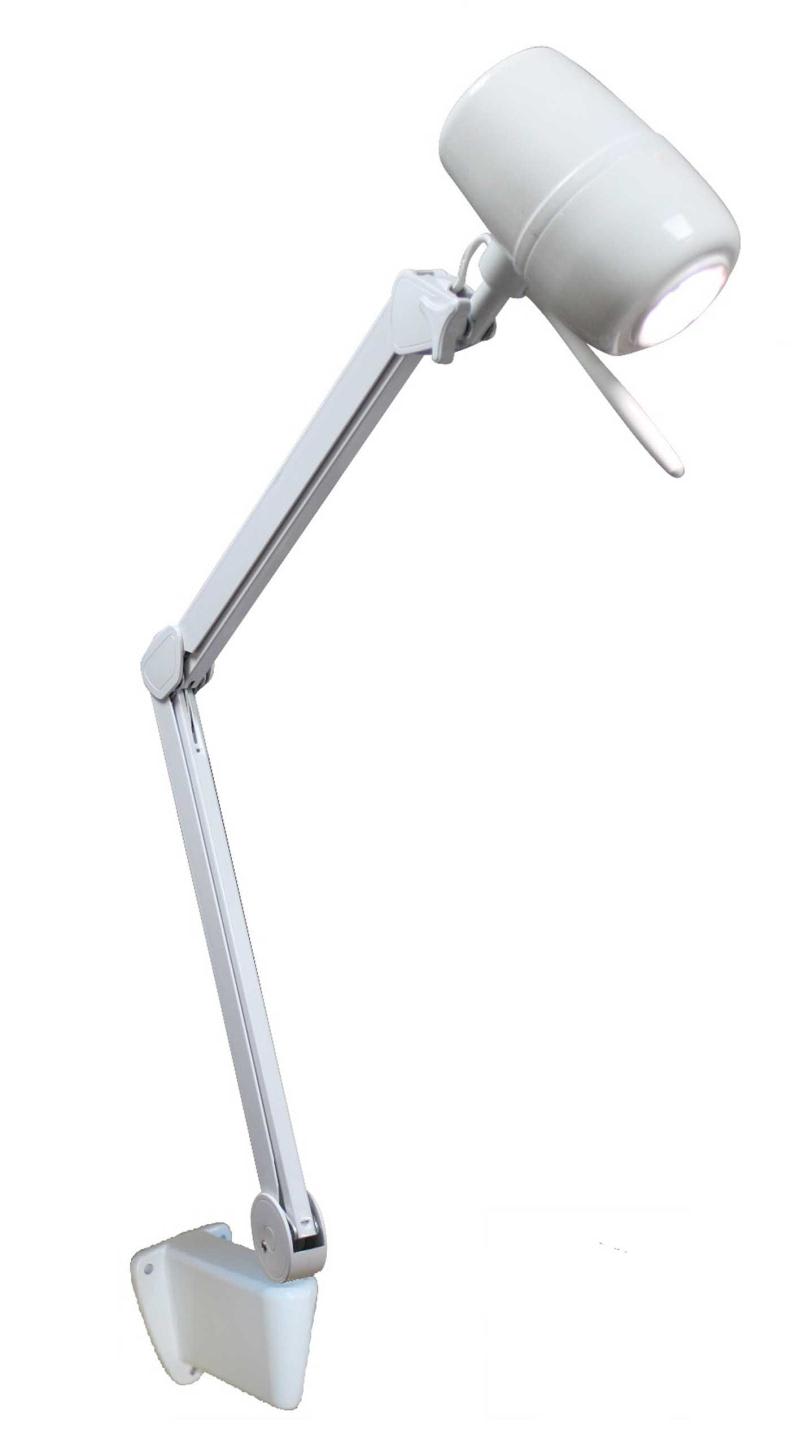

The DARAY X340 LED examination light is designed specifically for use during medical consultation and diagnosis. This model is available with a wide range of mounting options to ensure your examination light is exactly where you need it.

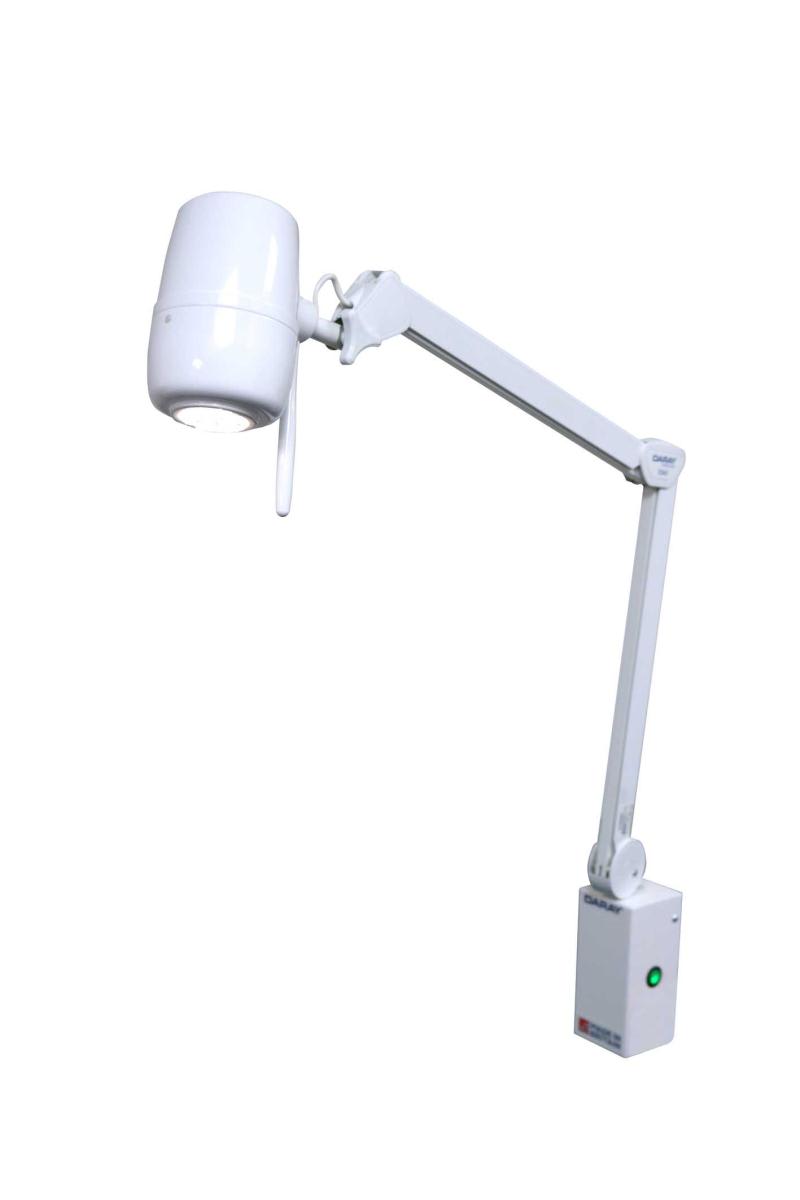

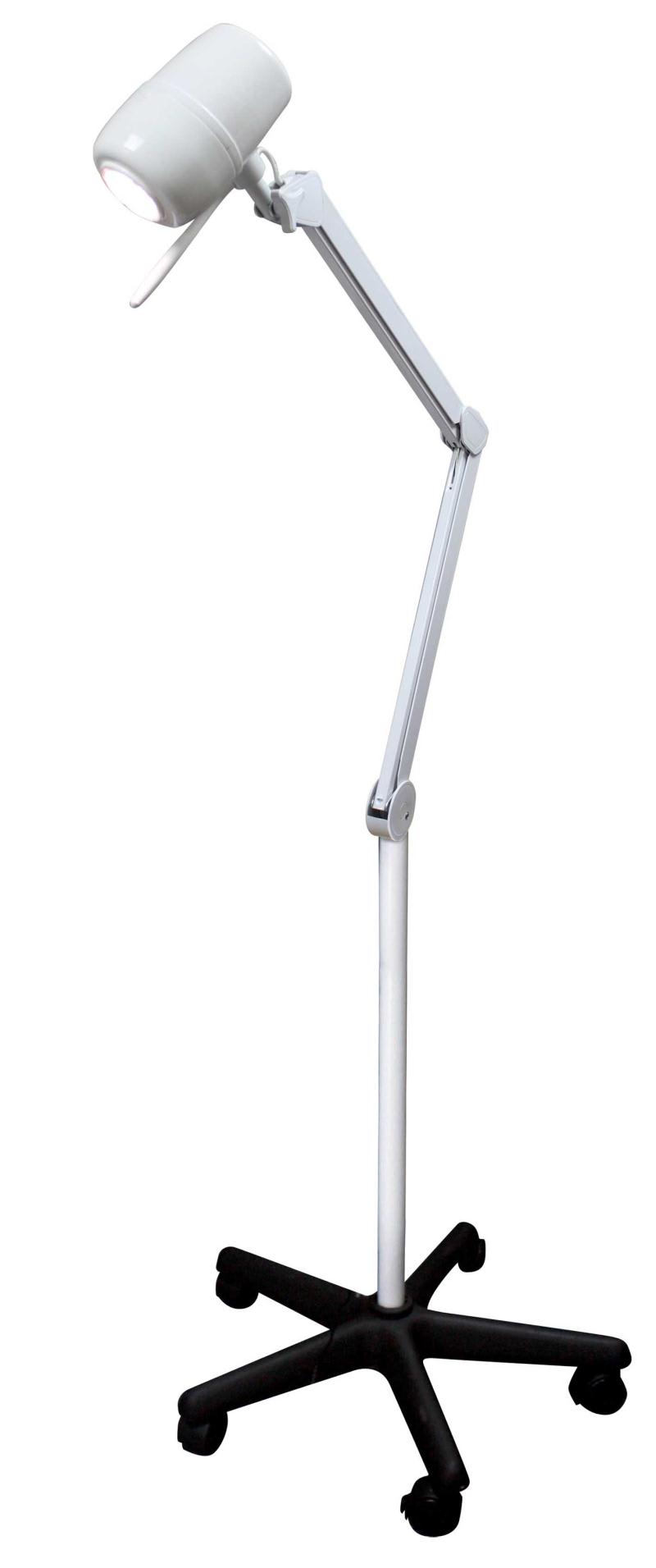

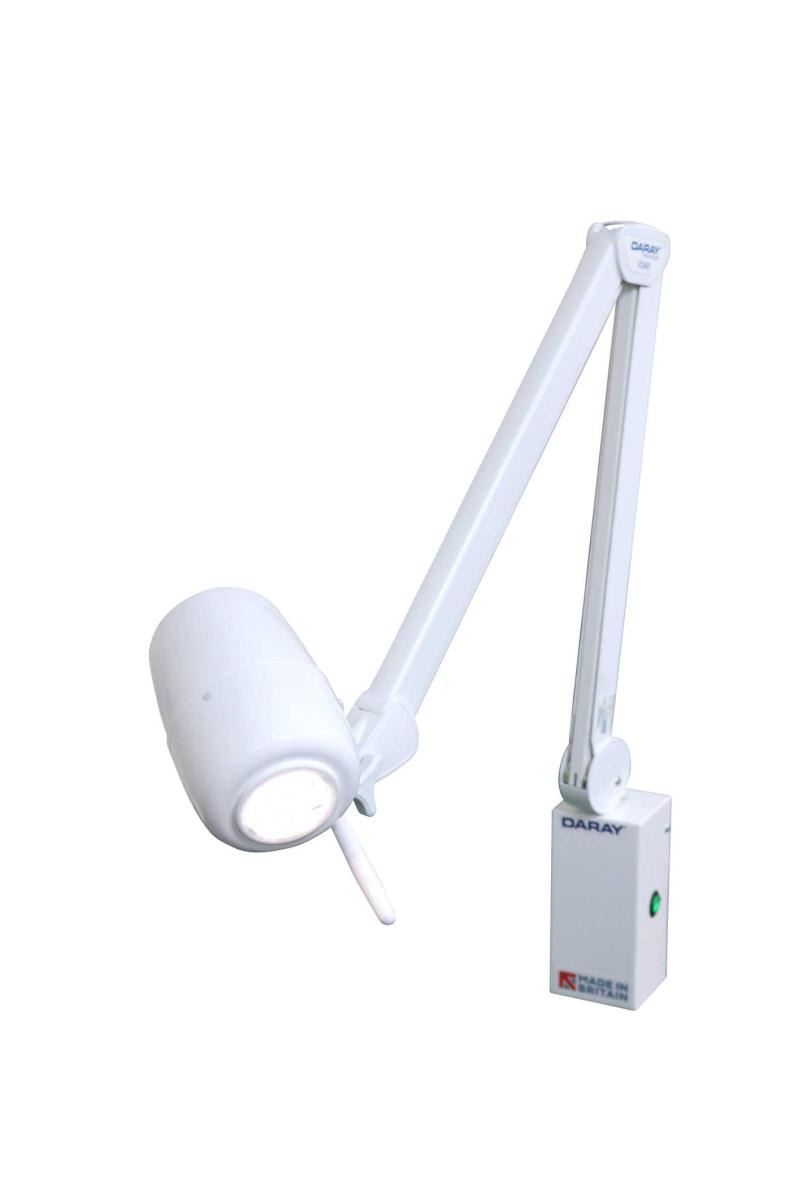

The X340 has a smooth, spring balanced arm, making the light extremely versatile, and perfect for gynaecological procedures. Utilising LED technology, this general examination light has been developed to provide an intense beam with excellent colour rendering properties. This model requires minimal maintenance and has a smooth, fully enclosed BioProtect head to assist with the management of infection control. This is an ideal light for GP surgeries and clinics where flexibility and performance are crucial. Choose between many different mounting types dependant on your application, including: ceiling, wall, mobile, and desk options. Hardwired options also available.
Standard Features
- A strong beam of light with an even intensity across the entire area for clearer viewing and reduced eye strain
- One touch variable intensity
- Telescopic ceiling tube - extremely versatile
- Balanced arm with excellent range of movement
- 1000mm reach - ideal for gynaecological examinations
- Costs up to 75% less to run than halogen
- 50,000 hours of life from the LED light engine*
- No more bulbs to change - reduces waste by 95% over the light's lifetime
- All metal chassis and light-head, hardwearing and can be fully recycled
- No halogen, mercury, cadmium, lead or CFCs. No chemicals harmful to the environment.
- DARAY's LED technology has an intense clear white light beam equivalent to 75W halogen whilst consuming just 12W.
*Based on 5.5 hours use per day
Technical Specifications
The X340 has a low total cost of ownership, costing up to 75% less to run than equivalent halogen lights. This light has around 50,000 hours of life from the LED light engine equating to around 25 years of clinical use. The X340 requires minimal maintenance and has a smooth, fully enclosed BioProtect head to assist with the management of infection control. This is an ideal light for GP surgeries and clinics where flexibility and performance are crucial.
Specifications
| |
|
2006/95/EC Low Voltage Directive
|
|
Light
|
Light Source
|
LED
|
| |
Light Intensity (Lux) @ 0.5m
|
64,000 Lux ±5%
|
| |
Light Intensity (Lux) @ 0.75m
|
30,000 Lux ±5%
|
| |
Light Intensity (Lux) @ 1.0m
|
17,000 Lux ±5%
|
| |
Light Intensity Adjustment Range
|
10 - 100%
|
| |
Colour Temperature (Kelvin)
|
4,300K ±500
|
| |
Colour Rendering Index (CRI)
|
95
|
| |
Colour Rendering (R9)
|
88
|
| |
Light Field Diameter (D50)
|
@ 0.5m: 90mm
|
| |
|
@ 0.75m: 125mm
|
| |
|
@ 1.0m: 175mm
|
| |
Light Field Diameter (D10)
|
@ 0.5m: 220mm
|
| |
|
@ 0.75m: 255mm
|
| |
|
@ 1.0m: 340mm
|
| |
Number of LED's
|
6
|
|
Power
|
Power Consumption
|
14W 0.2A
|
| |
Average Working Life
|
>50,000 Hours
|
| |
Input Supply Rating
|
100 - 240V AC 50/60 Hz
|
| |
Output Supply Rating
|
30V DC 1A
|
| |
Temperature Rise on Patient/User
|
≤2°C
|
|
Other
|
Warranty Period
|
5 Years
|
| |
NHS E-Class Code
|
FBU, FKR
|
| |
Commodity Code
|
9018 908400
|
| |
GMDN Code
|
12276
|
