DEEP OSCILLATION® PERSONAL BASIC
This product is available for pre-order, contact us for more info and pricing.
SCOTT Medical are the official servicing and repair agent for Northern Ireland and ROI for all Deep Oscillation products.
Faster regeneration after surgery, traumatic injury, training, damage from overstraining, operations, maintenance of Lymphoedema and Lipoedema, and in neurological indications plus aesthetic conditions, including natural face lifting, for swollen eyelids and as a treatment for dark circles under eyes. Arthritis, back pain and tennis elbow are amongst the many indications included.

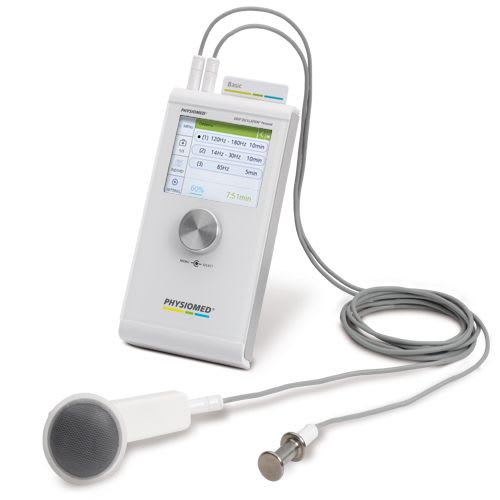

DEEP OSCILLATION® Personal Basic is designed for individual, mobile use. Battery operation and a handy size guarantee flexible use, both on the road and at home. The comprehensive indication list with helpful information and graphics additionally simplifies the application.
What is Deep Oscillation?
DEEP OSCILLATION® is an internationally patented, proven technology based on the effects of creating an electrostatic field in the tissue of the patient. Easy application is from therapist to patient/client via hygienic, vinyl gloved hands; utilizing all normal massage movements or via circular movements over the tissue with a handheld applicator. The handheld applicator also enables patient self-treatment.
The special structure of DEEP OSCILLATION® allows the creation of biologically effective oscillations in the treated tissue using electrostatic attraction and friction. In contrast to other therapies, these pleasant oscillations have a gentle and deep-acting effect on all tissue components to an 8 cm depth (through skin, connective tissue, subcutaneous fat, muscles, blood and lymph vessels).
The following physiological effects of therapy with DEEP OSCILLATION® are clinically documented:
- Pain reduction
- Anti-inflammatory effect
- Oedema resorption
- Wound healing promotion
- Trophic improvement
- Improving tissue quality
Deep Oscillation has many advantages:
- Because of the non-invasive, non-traumatic, gentle nature of this therapy, very early possibilities of application are possible following injury and from day one post operatively.
- It is for this reason that Deep Oscillation has quickly become the tool of choice in the sporting rehabilitation environment; getting players into weight-bearing forms of physiotherapy and back In to the game faster than has previously been possible.
- In post-surgery; pain, swelling and bruising mean a shorter healing period, it is ideal for post liposuction.
- Chronic conditions can also be worked upon with effective results including Lymphoedema and Lipoedema.
- Self-Treatment in Lymphoedema means the patient is in control of swelling at home or abroad and partner/supportive other can apply treatment via gloves providing contraindications have been checked.
The effectiveness of deep oscillation therapy is sufficiently proven by scientific research.
SPECIFICATIONS
Contact elements made of biocompatible titanium, special gloves for direct treatment and special hand applicators in different sizes for surface and local treatments
Standard Accessories
- Instructions for use
- Hand applicator handle
- Charger for DEEP OSCILLATION® Personal
- Oscillator head Ø 5 cm
- PHYSIOPADS adhesive electrode for DEEP OSCILLATION® (set of 4)
- Powder
- Special gloves size: M
- Therapy Card Basic
- Titanium contact element
- Transport bag
- Connection cable DEEP OSCILLATION®
- Connection cable grey for adhesive electrodes
Technical Data
- Protection class: II, type BF
- Input voltage: 7.2 VDC
- Input current :1.3 ADC
- Power supply 1 x 7.2V Li-Ion 24 Wh battery
- Output voltage max: 400 Vs
- Load impedance: 10 MΩ
- Output frequency: 5 – 250 Hz
- Dimensions: (W x H x D) 100 x 31 x 190 mm
- Weight: 0.5 kg
- Charging device:
Power connection 100 – 240 VAC
- Mains frequency: 50 – 60 Hz
- Current consumption max: 0.35 A
PRODUCT FEATURES
The DEEP OSCILLATION® Personal Basic is designed for individual, mobile use. Battery operation and a handy size guarantee flexible use, both on the road and at home. The comprehensive indication list with helpful information and graphics additionally simplifies the application. Personal Basic can also be used to read and retrieve program sequences previously written on the deep oscillation therapy card with the DEEP OSCILLATION® Evident unit.
Special Features
- Single channel deep oscillation
- Frequency range from 5-250 Hz
- Contact element made of biocompatible titanium
- Special hand applicators in various sizes for surface and local treatments
- Easily interchangeable treatment heads for hygienic use
- Gloves for treatment with hands directly
General Features
- Intuitive operation with the PHYSIOMED one-button operation
- Colour screen
- Comprehensive overview of all therapy parameters
- The fastest possible entry into therapy via the indication index
- Extensive list of indications with information on therapy, dosage suggestions and illustrations
- Battery operation with powerful lithium-ion battery
