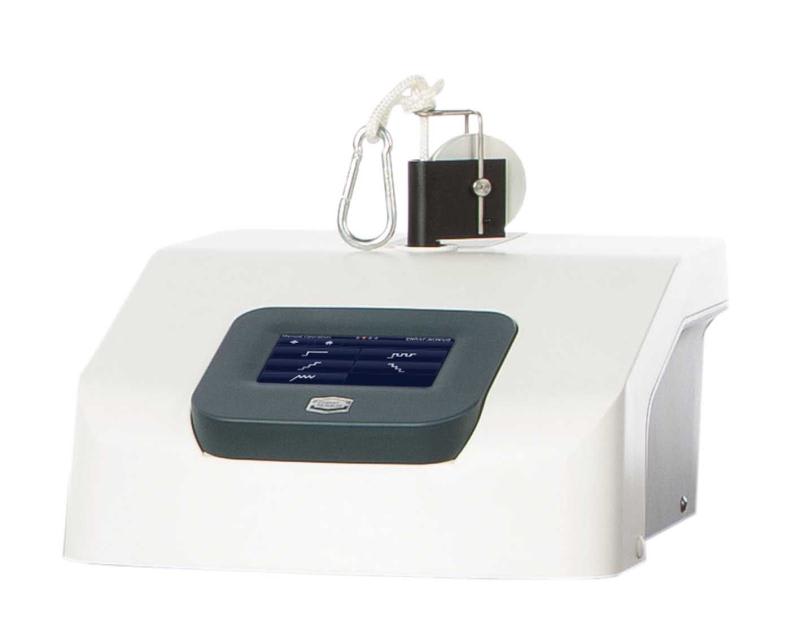

ELTRAC 471 TRACTION
EASY-TO-USE
The new Eltrac 471 is extremely easy-to-use thanks to the touch-screen and the intuitive interface. A clear and well-organised menu will assist you in making therapeutic choices. All essential information will be displayed. Not only while adjusting the settings for the therapy, but also during the therapy itself.
ACCURATE
The new Eltrac is precise. The forces are exercised on the patient with ultimate precision. The tractive effort in the cord of the Eltrac 471 is constantly measured during traction. The control of the Eltrac compares the measured value to the set value. Any deviations are immediately corrected.
SPECIFICATIONS
Form of therapy: Static, Intermittent, Pro- and Regressive, Cyclic
Traction force: 15 - 900 N / 1.5 - 90 kg / 3.4 - 202 Lbs
Traction force /base force hold time: 1 sec. - 1 hour (1 sec. intervals)
Repeats (intermittent and cyclic): 1 - 100
Steps hold time (pro- and regressive): 1 sec.- 5 min. (1 sec. intervals)
Steps (pro- and regressive): 1 - 25
Speed (change of traction force): 1 - 50 N/sec. (1 N intervals)
0.1 - 5.0 kg/sec.
0.2 - 11.2 Lbs/sec.
Treatment time: 1 sec. - 150 min.
Programmable favourites: 100+
Clinical protocols: Yes (3)
Sequential programming: Yes (up to 5 forms of therapy)
Safety control for traction force above: 200 N / 20 kg / 45.2 Lbs
Touch screen: 4.3 inch, full colour, capacitive
Mains voltage: 100 - 240 V (50/60 Hz)
Max.power consumption: 50 VA
Dimensions: 30 x 34 x 22 cm
Weight: 10 kg
