KINETEC PERFORMA CPM

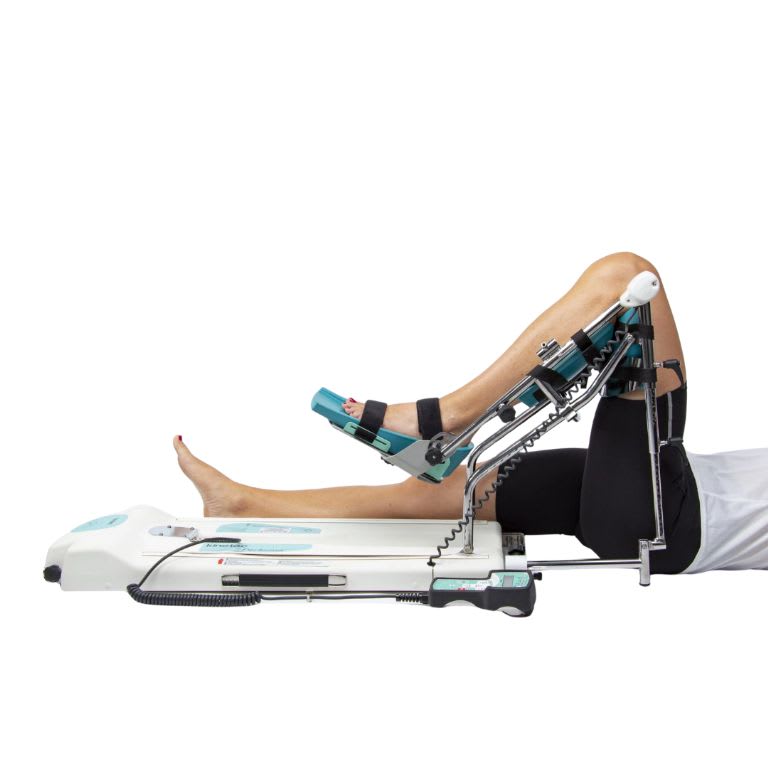

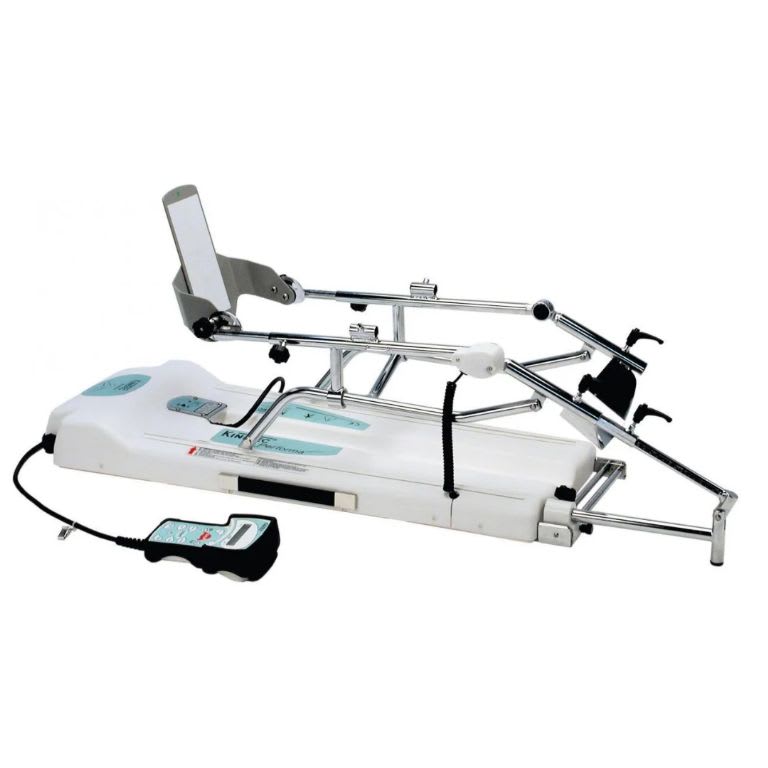

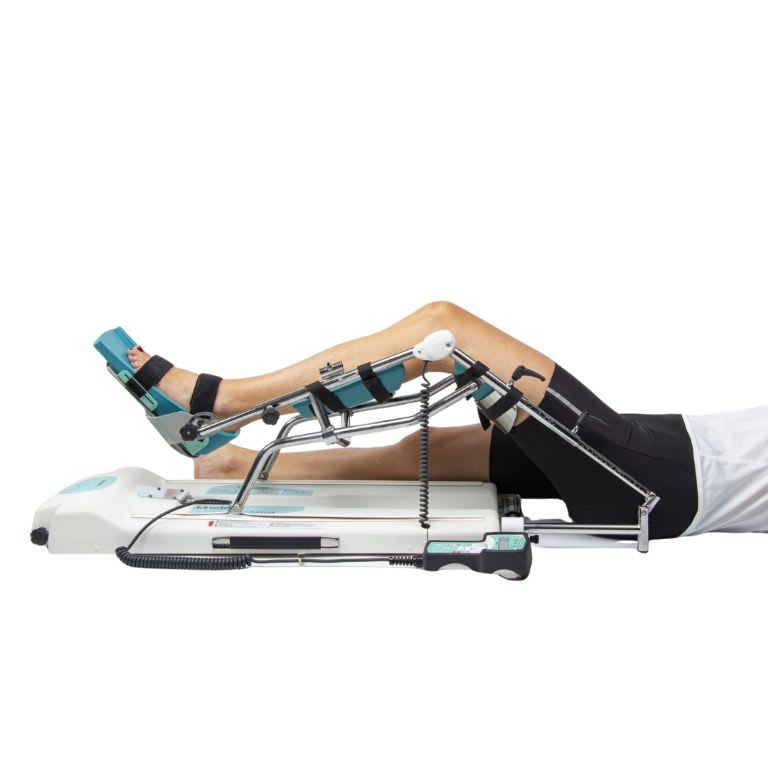

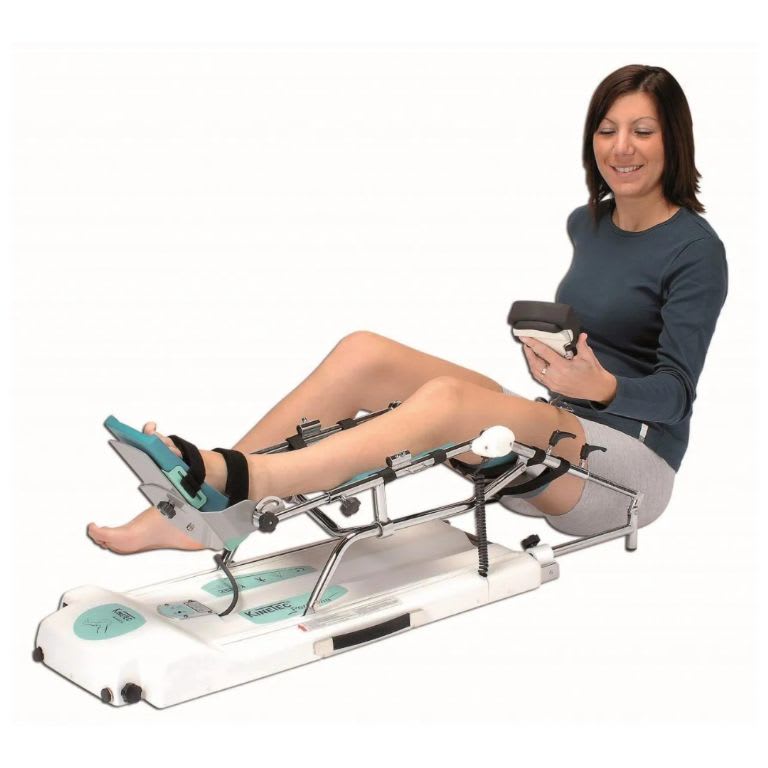

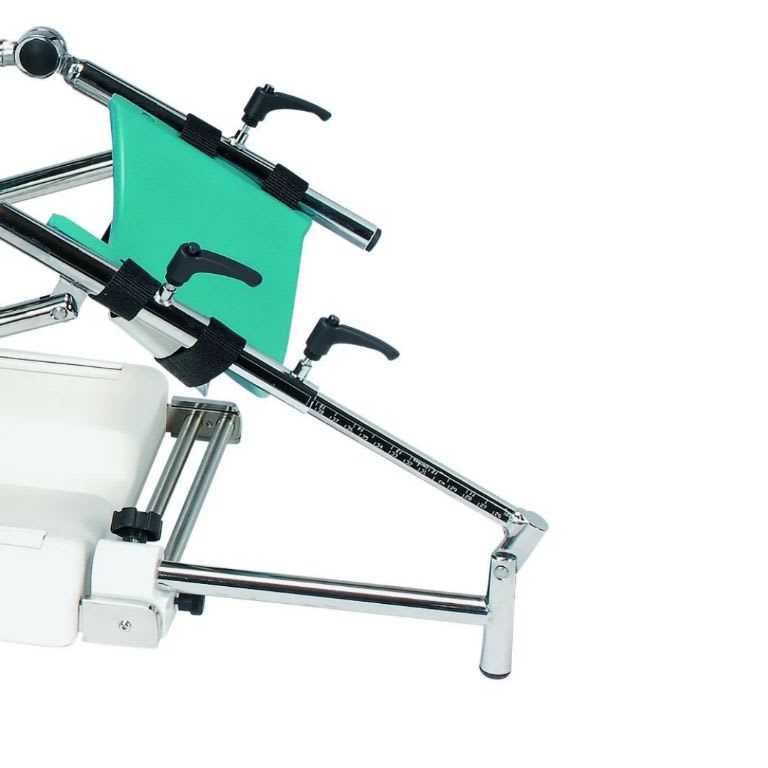

The Kinetec Performa features an anatomical design that perfectly replicates natural knee movement for superior rehabilitation results. Its unique perineal-free structure and adjustable thigh support provide exceptional patient comfort and adaptability. Designed for users from 1.12m to 2.06m, the Performa™ ensures precise leg alignment and smooth, natural motion. Offering a range of motion from -3 to 130°, it supports both passive and active resistance therapy ideal for early-stage sports injury recovery. The robust dual-axis construction enhances stability, while USB connectivity with Kinetec Data Capture software enables progress tracking and customised rehabilitation protocols.

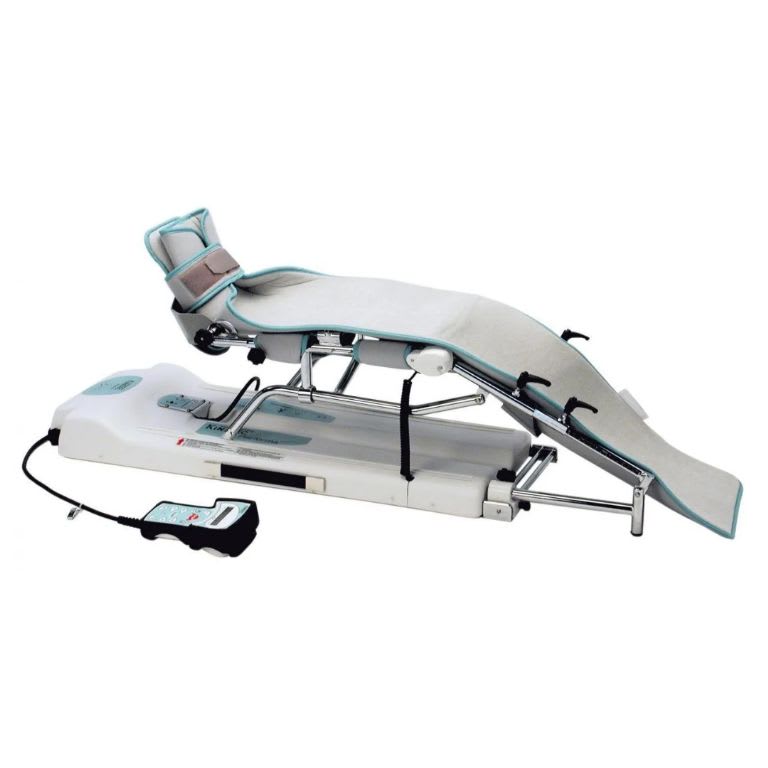

The KINETEC range of motion allows treatment of most knee & hip pathologies. Anatomically correct alignment increases patient compliance and decreases joint stress.
*For more information on additional accessories and add-ons for this Kinetec CPM, contact the SCOTT Medical team +44 28 9266 5482 info@scottmedical.com*
Specifications
Leg support perfectly anatomical.
Patient lock-out prevents accidental program changes and potential injury.
Start/Stop and reverse always accessible.
Load reverse ensures patient protection when excessive force is exerted on the joint.
Warm Up - The patient reaches gradually the pre-set full ROM.
Modulation - Allows manual setting of the ROM end-point based on patient tolerance. This mode is generally used at the beginning of the session.
ROM By Pass - Used during the session, this mode allows a manual setting based on new patient tolerance, thus offering a real progressive work of the Range of motion.
Force - This security feature allows the patient to reverse the movement following muscular contraction.
Timer - Control of the session time.
Programme - Allows set-up of 16 customised programmes.
Pauses - Pauses at movement limits, for improved results.
Type BF class II electrical device.
Long-life DC motor and screw-drive mechanism for years of reliable performance.
ROM: Knee: -3° to 130°, Hip: 80° to 10°.
Foot positioning: Plantar flexion: 40°, Dorsal flexion : 30°, Abduction/adduction: 30°.
Speed: 50° to 220° per minute.
Weight: 15 kg.
Patient sizing:
- Full patient: 112 to 206 cm
- Full leg: 58 to 110 cm
- Tibia: 32 to 60 cm
- Femur: 26 to 50 cm
- User weight: 135 kg
