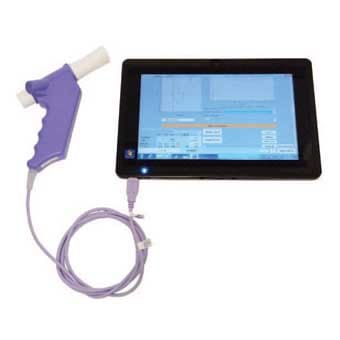

ndd Easy On-PC Spirometer with Tablet PC
Easy On is the new, lightweight spirometer that connects directly into a PC or laptop for real time spirometry diagnostics.
Complete with diagnostic software
Essential features:
• PC guided spirometry
• Bio calibration check feature
• Ready to use GDT interfacing possibility
• In- and expiratory real-time curve
• Test selection with or without tidal breathing
• Pre/post measurements
• Quick test
• Children incentive
• Trending
• Actualized Fletcher curve on report
• Country specific predicted values selectable
• Interpretation mode selectable
• Lung age
• Auto QC
• Ethnic correction factors
• Multilingual Modes, parameters and standards:
• Auto QC user selection for best trial from 8
• Tidal breathing selectable
• FEV1, FEV6, FEV1/FEV6, FVC, FVL
• FEV1/FVC, FEV1/VC, FEV1/VCin, PEF, Pre/Post, % var, MEF ( FEF )
• ERS, ATS
• no sensor in contact with sample
• no influence of humidity, barometric pressure, contamination
• no calibration
• no cleaning, no maintenance
• simple and economic consumables
• easy to operate outside lab with operator prompts and diagnostics
• extremely high accuracy for low flows
• no down time
Specifications and PC system requirements:
- Dimension of PC sensor: 16 x 3 x 7 cms
- Measuring accuracy: volume +/- 2 % or 0,050 l
- Resolution: volume > 1 ml
- Measuring range: volume +/- 12 l
- Resistance: approx 0.3 cm H2O/l/s
- PC operating system: Windows 7 TABLET
Complete with ndd EasyOn PC Software TrueFlow Spirometer Tablet
Specifications and PC system requirements:
Dimension of PC sensor: 16 x 3 x 7 cms
Weight: 155 g
Cable length: 1.8 m
Measuring accuracy: volume +/- 2 % or 0,050 l
flow +/- 2 % or 0,020 l
PEF+/- 5 % or 5 l/min
Resolution: volume > 1 ml
flow 4 ml/s
Measuring range: volume +/- 12 l
flow +/- 16 l/s
Resistance: approx 0.3 cm H2O/l/s
PC operating system: Windows 7 TABLET
