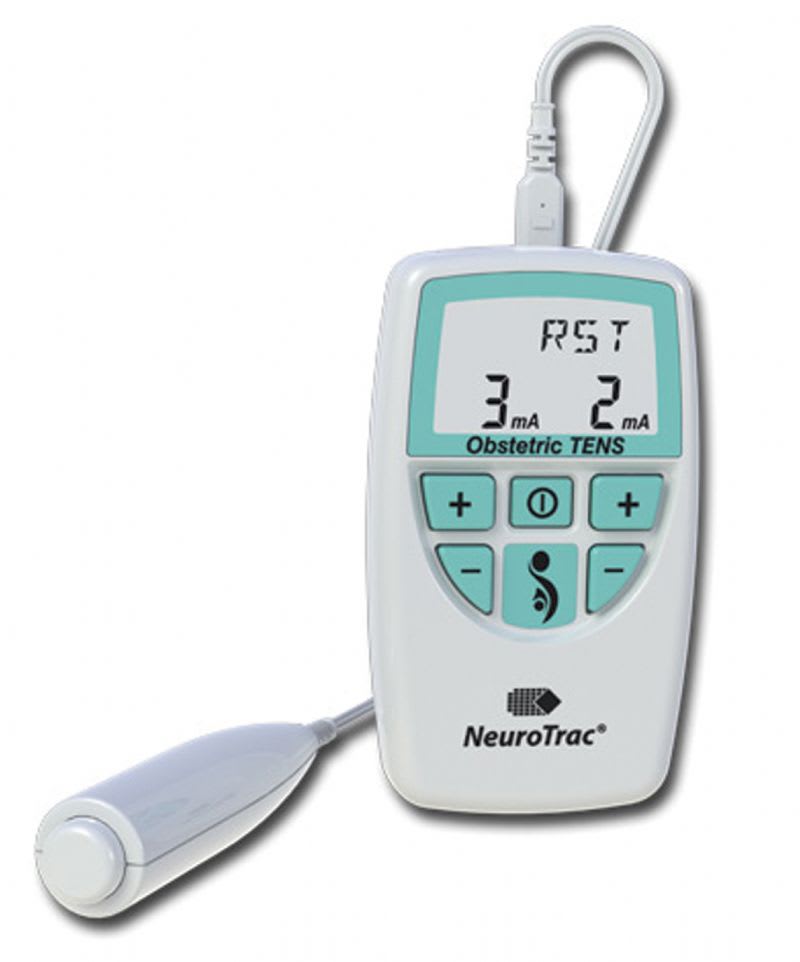

NeuroTrac Dual Channel Labour TENS

Dual Channel Labour TENS

We are pleased to introduce the latest Obstetric TENS which is specifically designed to bring the drug-free benefits of TENS to pain management. This is a dual channel unit which incorporates durability with very simple operation. The output can be adjusted to each pair of electrodes in response to the patient’s degree of site pain. The hand held boost control allows for extra pain relief when switched from normal to burst mode to continuous mode.

Features:
• Digital output and control ensures greater accuracy.
• Digital L.C.D. display.
• Very simple operation.
• Boost Button

Supplied with
1 x Soft Carry Case
2 x Patient leads
1 x Battery
1 x Pack of 4 Electrodes

Cannot be supplied outside UK or Ireland

Technical Info

• Dual channel: individually isolated circuits.
• Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Pulse width: 220μS [2% accuracy].
• Pulse Rate: 90Hz (Continuous mode) [2% accuracy].
• Mode: Continuous (Boost mode).
• Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz, repeating twice every second (Rest mode).
• Ramp up Time: 0.8 seconds from Rest to Boost.
• Time duration: continuous until switched off.
• Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
