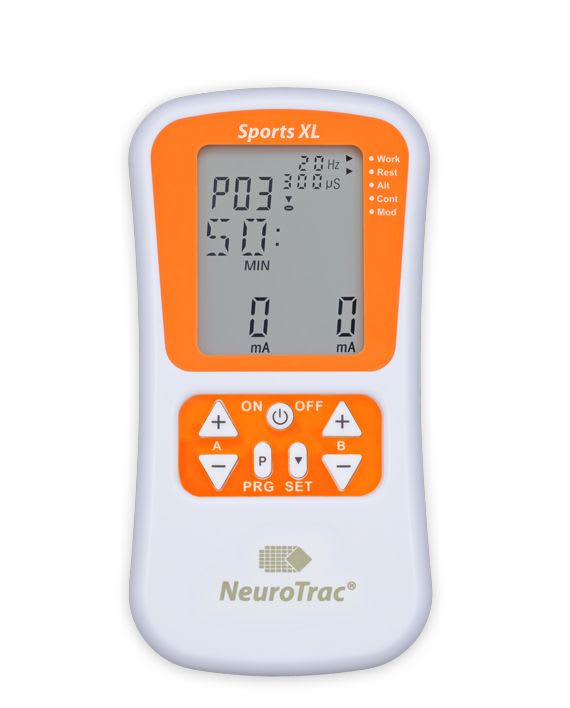

NEUROTRAC XL SPORTS STIMULATOR
The NeuroTrac Sports XL is an advanced and modern professional digital dual channel STIM unit. The unit has a wide variety of functions including muscle building, toning, rehabilitation and cellulite reduction.
Features:
Supports for 4 lead wires
8 Electrodes
21 built in sports and muscle rehabilitation programmes
3 custom programmes.
5 segment programmes can be customised to meet the most demanding user.

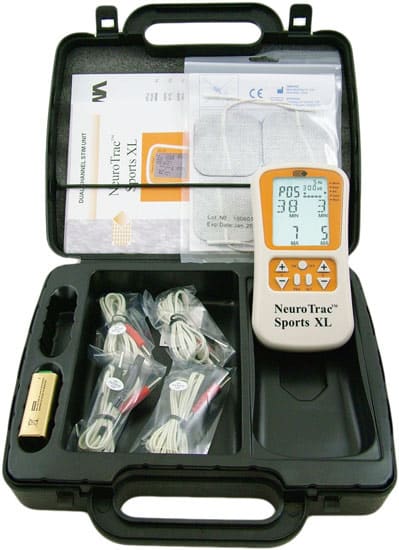

Includes:-
1 x Soft Carry case,
1 x User Manual,
4 x Patient Leads,
1 x Battery,
1 x Pack of 4 Electrodes (SAE55)
Supplied in soft carry case
Cannot be supplied outside UK or Ireland
SPECIFICATIONS
- Dual channel: individually isolated circuits.
- Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
- Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
- Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
- Selectable pulse width: 50 μS – 330 μS [2% accuracy].
- Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
- Time duration of the treatment selectable: 1 minute to 90 minutes.
- Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
- Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
- Ramp up time 0.1 – 9.9 seconds.
- If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
Physical dimensions: 134 x 69 x 29.7 mm.
Weight: 0.18 KG with battery.
