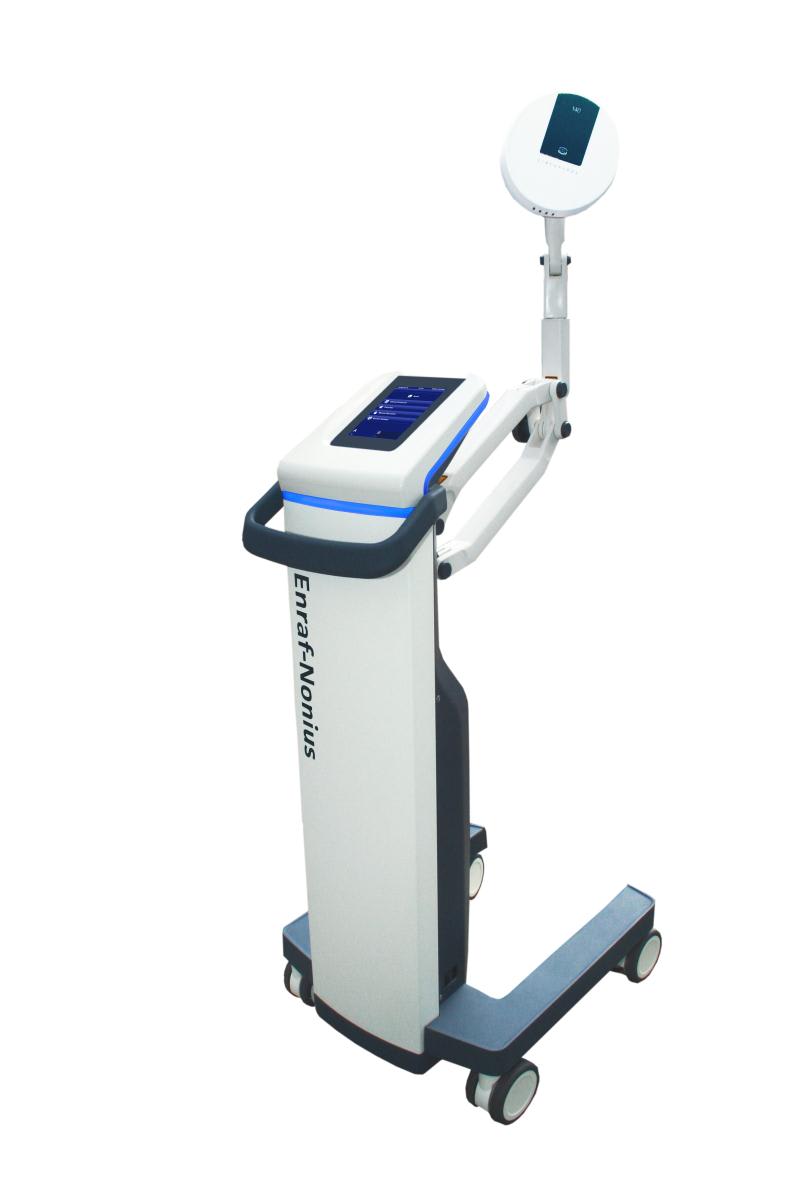

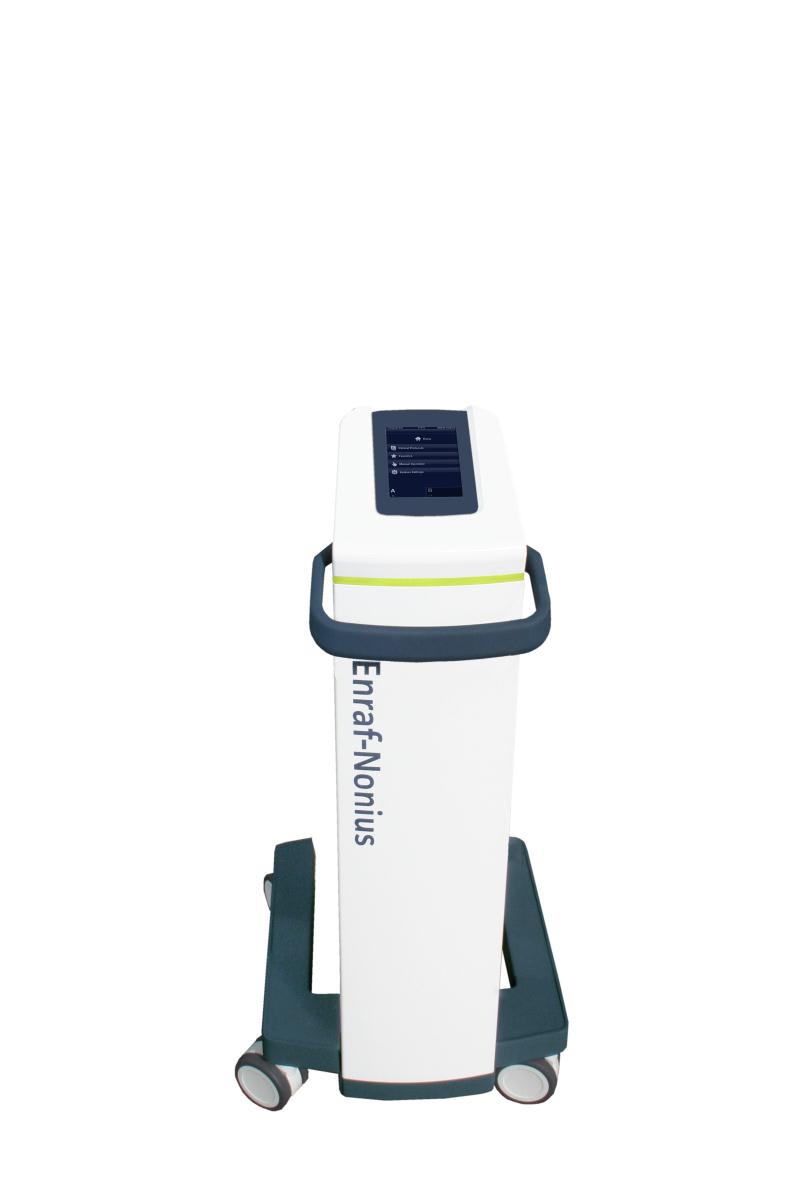

ENRAF-NONIUS CURAPULS 670 SHORTWAVE
The all New Enraf-Nonius revolutionary Curapuls 670 offers an effective, safe and easily administered therapy for various disorders of the locomotor system and for the restoration of soft tissue.
A VERY EASY-TO-ADMINISTER TREATMENT, BASED ON CLINICAL EVIDENCE
Working with Curapuls 670 is extremely easy now. Curapuls 670 has been equipped with over 25 clinically proven treatment suggestions.
Moreover, all information on administering the right dose of energy has been included in the “smart mode”. The only information you will have to enter yourself is the stage of the condition. This can range from acute (a-thermal) to chronic with a thermal component. This corresponds with the average power of the device. Curapuls 670 will automatically enter the correct values for parameters such as pulse duration, pulse frequency and peak power for you. It doesn’t get any easier than this!
Colour output bar
There has been a strong evidence base for the application of radio frequency energy for many years now. Recent literature, too, shows a scientific evidence base, particularly for the pulsed application of this therapy in highly relevant medical issues such as post-operative pain and swelling, as well as wounds that are not healing well.
Device featuring all the knowledge
Enraf-Nonius has successfully incorporated all the available scientific knowledge on the application of this therapy in this device.
The unique algorithm and the highly user-friendly user interface, supported by the intuitive use of colours, make it very easy indeed for you to help your patient. It will only take you a few seconds to select the best possible treatment for various types of pain and inflammation, depending on how acute or chronic the disorder is
Light ring
The unique and good-looking light ring provides both the therapist and the patient with a clear indication of the amount of energy and the nature of the treatment being administered.
Application
This therapy is commonly used for the palliative treatment of pain and swelling (both post-operative and regular), among other things, and as a very effective tool that will help wounds heal.
A-thermal and thermal
With its low-power settings, this device is exceptionally well suited to the treatment of acute conditions. Recent large-scale research has shown that this method is particularly well suited to the relief of post-operative pain and the promotion of post-operative wound healing.
However, the device can also be used to achieve thermal effects, as well. Even these higher levels of power can be safely administered, and they are very effective in the relief of pain caused by chronic conditions such as osteoarthritis.

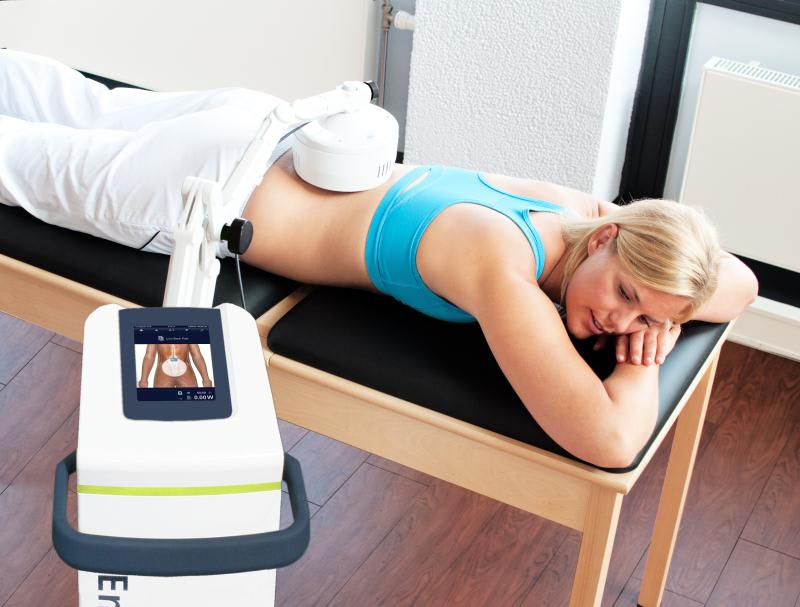

Easy to use and hands free

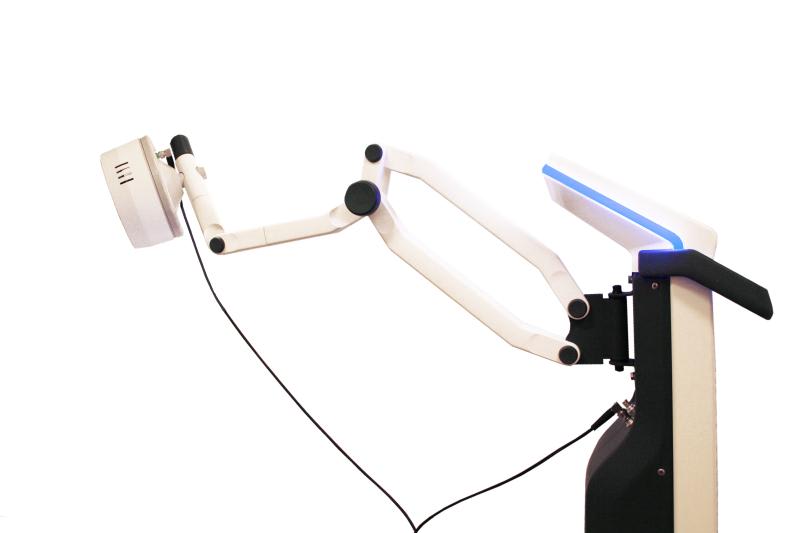

This therapy can be administered entirely hands free using the convenient arm, which can be fixed in the right position with just one button. This makes the device a clear improvement on labour-intensive therapies such as Tecar, which are generally administered to treat the same problems. The clever user interface and the touch screen also help therapists administer the therapy easily and without any effort.
A second arm can be affixed if necessary. Therapists can simultaneously use two circuplodes to approach the treatment area in a highly effective manner. Thanks to its two completely independent channels, the device can even be used to treat two areas at once, or even to treat two different patients at the same time
Please enquire for pricing or give us a call on +44 28 9266 5482.
SPECIFICATIONS
Frequency: 27.12 MHz
Channels: 2
Pulse power: 0-200 W
Average power: 0-64 W
Mains voltage: 100-240 V (50/60 Hz)
Power consumption: max. 400 VA
Dimensions (wxdxh): 48x56x110 cm
Weight (unit): ca. 27,5 kg
Standard accessories
1462550 Electrode arm
1670752 Instructions for use (on CD)

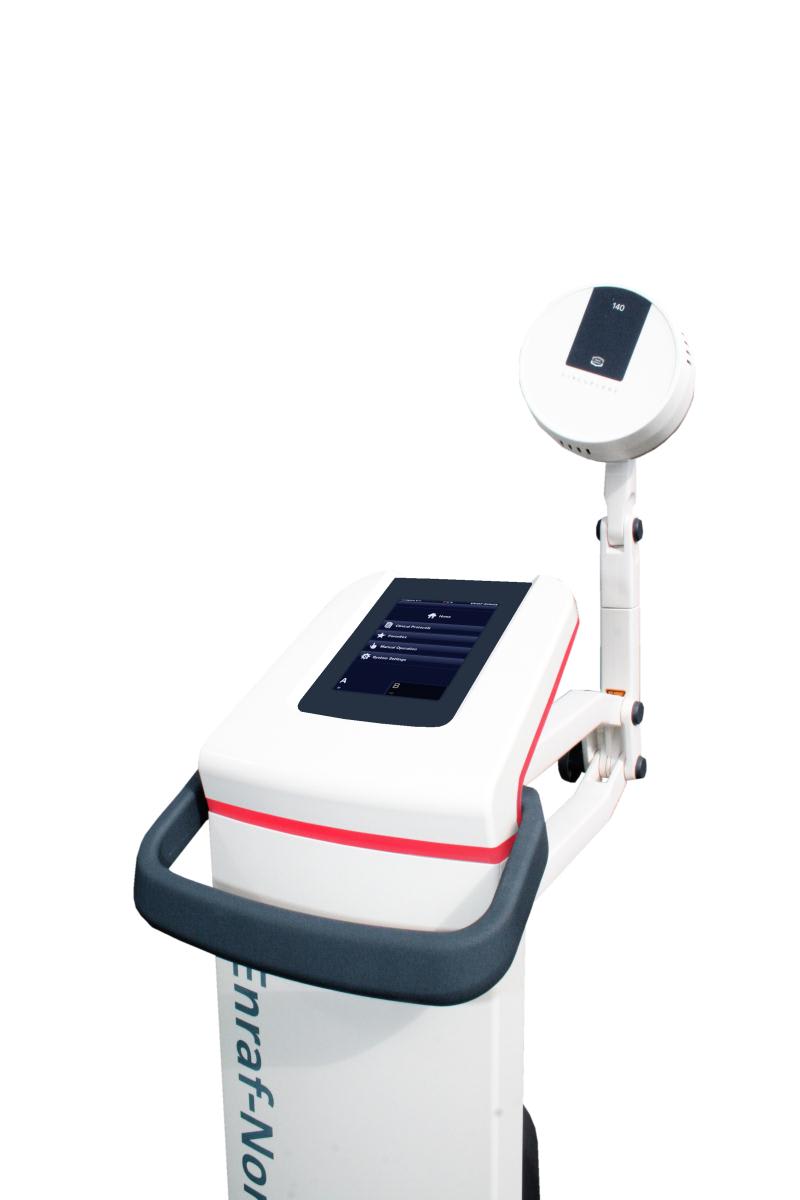

1462570 Circuplode Ø 140 mm
The Therapy
The device transmits electromagnetic energy in the radio frequency spectrum. This therapy is known as PRFE (pulsed radio frequency energy) or PSWT (pulsed shortwave therapy). Curapuls 670 generates electromagnetic energy with a frequency of 27.12 MHz. Due to the pulsed nature of the energy, the device can very briefly transmit high peak power Watts, followed by relatively long periods of inaction. As a result, the patient’s tissue receives intense stimulation, although the therapy is very safe and comfortable for the patient. Due to the nature of the electromagnetic energy, it is mainly absorbed by tissue with a low level of impedance, such as well-vascularised tissue (muscle tissue) or tissue featuring oedema or recent haematomas. Absorption of this energy promotes tissue recovery and improves circulation. Shortwave therapy is not very physically demanding and is effective very deep inside the body. The patient hardly experiences any thermal sensation but the effect on his or her deep tissue is significant!
A very easy-to-administer treatment, based on clinical evidence Working with Curapuls 670 is extremely easy now. Curapuls 670 has been equipped with over 25 clinically proven treatment suggestions. Moreover, all information on administering the right dose of energy has been included in the “smart mode”. The only information you will have to enter yourself is the stage of the condition. This can range from acute (a-thermal) to chronic with a thermal component. This corresponds with the average power of the device. Curapuls 670 will automatically enter the correct values for parameters such as pulse duration, pulse frequency and peak power for you.
