NeuroTrac Myoplus Pro Biofeedback & Stim

NeuroTrac® MyoPlus Pro Biofeedback & Stim

New and Improved touch-screen with full colour display. The new user friendly interface makes it a self-explanatory unit with the interactive learning on the go, including electrode placement, running EMG graph as well as many other helpful tools. Including 47 preset programmes !

MyoPlus Pro Single Channel EMG & Stimulator

Combined single channel EMG/ Muscle Stimulation. EMG + Stimulation mode {Passive + Active}, EMG Triggered Stimulation, Muscle Stimulation and EMG Modes. Designed to be used for a wide range of Physiotherapy, Sports and Rehabilitation applications including Continence and Stroke treatment. Custom programs enabling up to 5 phases to be set up in one program. Used as a learning tool with emphasis on improving treatment protocols using EMG and Neuromuscular Stimulation. Locks programmes and records Patient Home Compliance on a daily basis. Complete with desktop stand.

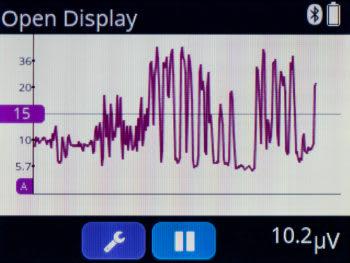

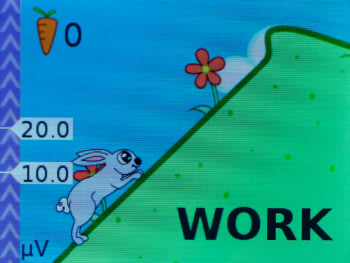

• The new user friendly touch screen based interface makes it a self-explanatory unit with interactive learning on the go, including electrode placement, running EMG graph, EMG biofeedback Games and Templates as well as many other helpful tools.
• Pre-set programmes for Incontinence treatment (including a special programme for the treatment of incontinence by stimulating the nervous tibialis posterior with self-adhesive electrodes) and neuro-muscular Rehabilitation.

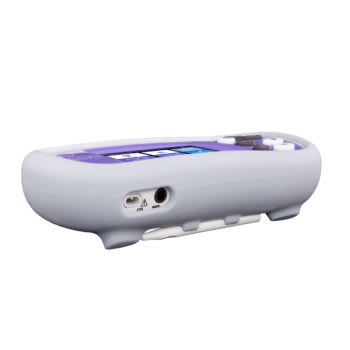

• Supplied with Rubber sleeve with stand and lanyard attachment option.
• Designed with the Physiotherapist in mind and can be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).
• Single channel EMG (Biofeedback) combined with 1 channel of NMES (stimulation).
• Single channel ETS (EMG triggered stimulation) with single channel stimulation.

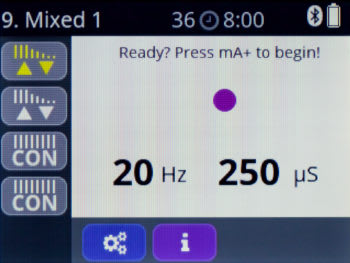

• Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.
• Multilingual full color display screen and voice prompts for Biofeedback.
• Manual and Automatic threshold control.
• EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation).
• Stand alone device or used in conjunction with established multilingual software.
• Up to 10 meters of wireless (Bluetooth) connection for NeuroTrac Software.
• For home users: Produces and prints (with the insatllation of the PC Software) the comprehensive patient progress reports on a day to day basis providing average readings on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current.
• Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation.
• 22 Pelvic Floor / Continence based programmes for ease of use
• 25 Neuromuscular Rehab programmes, post stroke, MS, muscle re-education, etc
• Optional custom programmes to suit your requirement

• Includes:-

  1 x Soft Carry case,
  1 x User Manual,
  1 x Patient Lead,
  1 x Reference Lead,
  4 x Batteries,

Units also available for Monthly Hire. For hire details please contact the office

Please note this unit is supplied without probes or electrodes. Please select and purchase at time of order.

Cannot be supplied outside UK or Ireland

MyoPlus Specifications:

1. EMG

• Single channel EMG

• EMG Range: 0.2 to 2000 μV RMS (continuous)

• Sensitivity: 0.l μV RMS

• Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz

• Selectable Bandpass filter – 3db Bandwidth,

•      a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts

•      b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%

• Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)

• Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz

• Work / Rest periods: 2-99 seconds

• Number of Trials: 2-99

2. NMES, TENS and ETS

• Single channel Stimulator

• Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to Electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.

• Type: Constant current, maximum output voltage 70 Volts +5 / -10 Volts

• Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current

• Pulse width selection: 50-330 μS (10% accuracy)

• Pulse rate selection: 2-100 Hz (5% accuracy)

• Work / Rest periods: 2-99 seconds

• Time 1 – 99 minutes

• Ramp up time: 0.1 – 9.9 seconds

• Preset and user programmable treatment Programs

• Automatic output shut off with detection of open electrode above 10 mA (+/- 2mA).

Battery:
Battery set: 4 x 1.5V, AAA battery.
Low battery indication at 5.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately!
The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 1 minute, when in stimulation mode (home screen) and all channels are 0mA.

Expected average battery set life [of standard 850 mAh, alkaline]:
14-18 hours in STIM, 28 hours in EMG mode.

Expected service life:
5 years. Careful use and maintenance extends the life of the unit over the service life limit.

Environmental Conditions for use:
+5 to +40 degrees Centigrade. 15-93% Humidity.

Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-93% Humidity.

Physical:
Dimensions: Length 150 mm, Width 89 mm, Depth 35 mm.
Weight: MyoPlus Pro device: 140g (without batteries).
