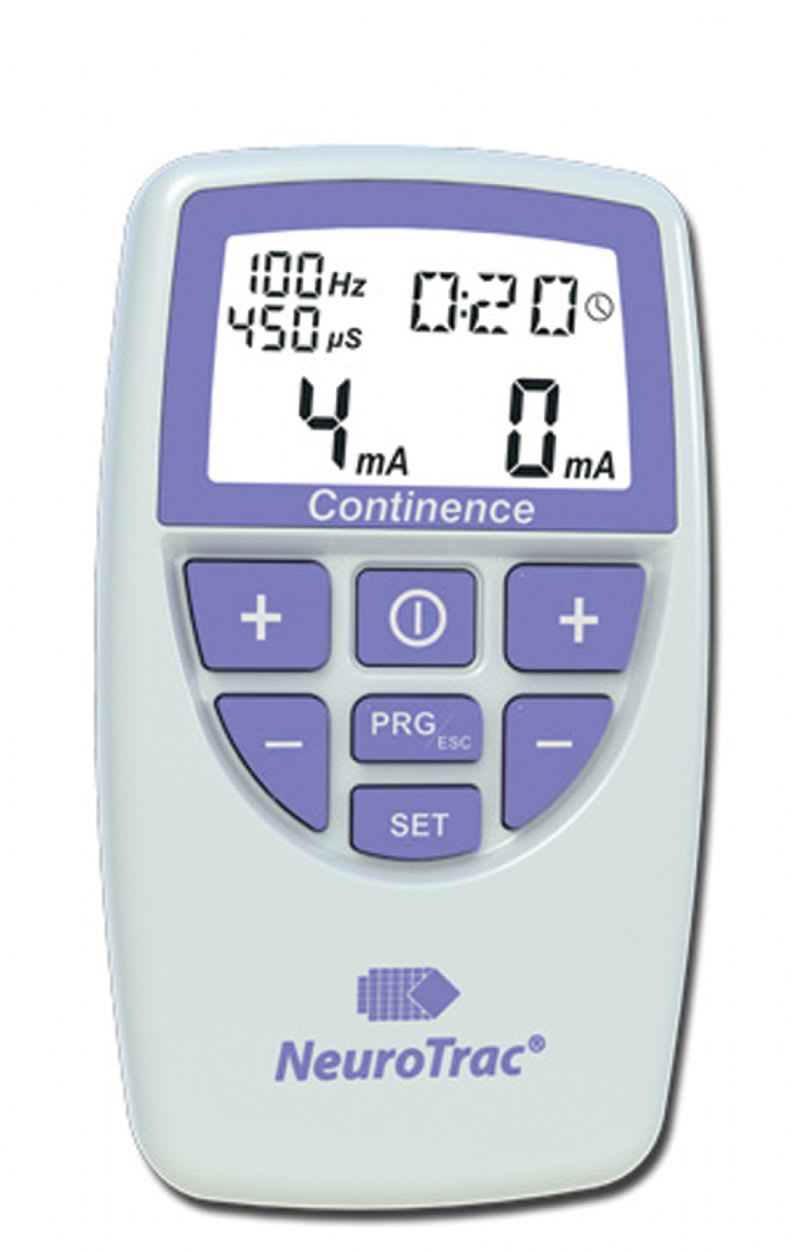

NeuroTrac NT4 Continence Stimulator

NEUROTRAC NT4 CONTINENCE STIMULATOR
The NeuroTrac NT4 Continence is an advanced and modern dual channel Stimulation unit featuring 9 preset programmes & 3 user adjustable programmes. The unit is specifically designed for treatment of incontinence. The unit is also lockable & can provide the clinician with summary data of time used & average current output. Includes carry case, leads & battery.

Please note this unit is not supplied with Vaginal, Anal or Self Adhesive Electrodes.
These may be purchased seperately as required.

• Digital Dual Channel Stimulator (NMES)used to treat urinary incontinence by sending a mild electric current to nerves in the lower back, tibialis nerve or in most of the cases, to the pelvic muscles using a probe.
• Suitable for urinary or rectal incontinence.
• 9 Built in programmes for ease of use.
• 3 Customisable constant mode programmes.
• Ability to lock the unit and records total time in use and average current.
• Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
• Keypad with bigger buttons for ease of use.
• Compact, light and reliable.

Features and Benefits
Suitable for urinary or rectal incontinence
Digital Dual Channel STIM unit
9 Built in programmes for ease of use
3 Customisable constant mode programmes
Ability to lock the unit
Records time in use and average current
User friendly
Compact, light and reliable

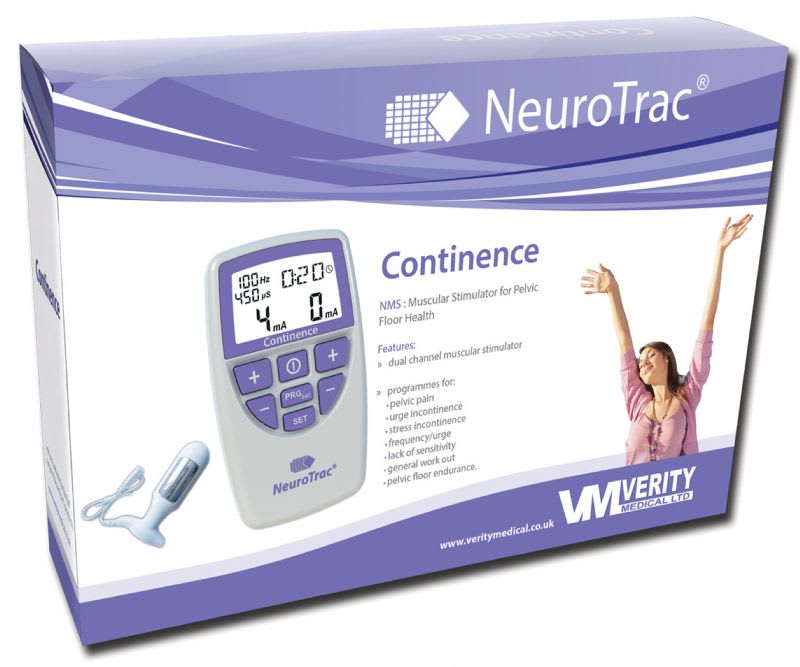

Supplied with
1 x Soft Carry Case
2 x Patient leads
1 x Battery

Cannot be supplied outside UK and Ireland

Continence Stimulator

• Dual channel: individually isolated circuits.
• Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50 µS – 450 µS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
• Time duration of the treatment selectable: 1 minute to 90 minutes.
• Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
• Ramp up time 0.3 – 9.9 seconds.
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on
