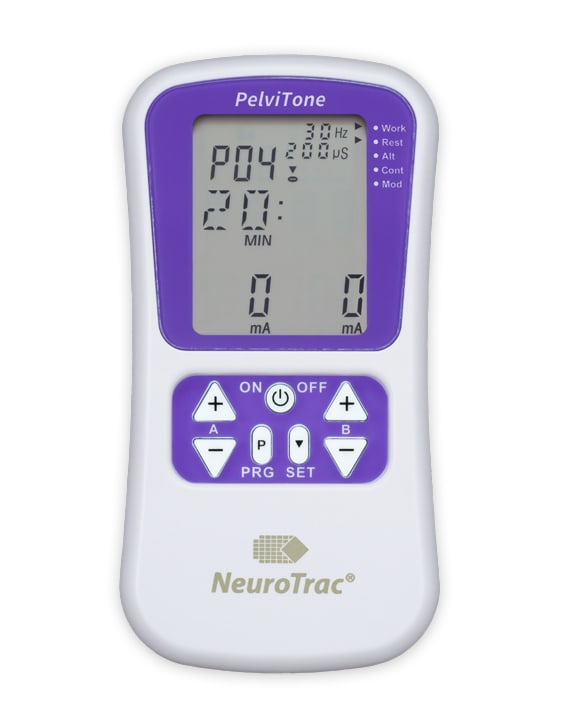

NeuroTrac Pelvitone Continence Stim
The NeuroTrac PelviTone is an advanced and modern digital dual channel STIM unit. The PelviTone unit will help with a wide variety of continence problems and is widely used by therapists around the world. If you suffer from any type of continence problem, the PelviTone may be able to help.
Features:
11 built in continence programmes
3 custom programmes.

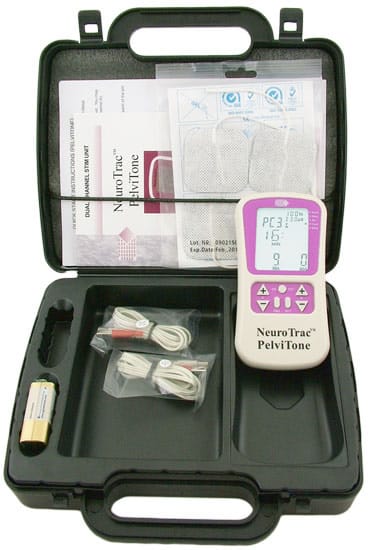

Includes: Manual, Carry case, Leads & Battery.
Comes with a hard carry case
Internal Vaginal or Anal electrode can be ordered separately.
Includes:-
1 x Soft Carry case,
1 x User Manual,
4 x Patient Leads,
1 x Battery,
Units also available for Monthly Hire. For hire details please contact the office
Please note this unit is not supplied with Vaginal, Anal or Self Adhesive Electrodes.
These may be purchased seperately as required.
Cannot be supplied outside UK or Ireland
STIM
- Dual channel: individually isolated circuits.
- Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
- Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
- Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
- Selectable pulse width: 50 µS – 330 µS [2% accuracy].
- Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
- Selectable treatment time duration: 1 minute to 90 minutes.
- Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
- Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
- Ramp up time 0.1 – 9.9 seconds.
- If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
Physical dimensions: 134 x 69 x 29.7 mm.
Weight: 0.18 KG with battery.
